🧠 Processes and Threads: A Restaurant Kitchen Metaphor for Operating Systems

In operating system design, it's often difficult to "hold it all in your head"—the abstraction layers, the memory models, the execution context. To make sense of it, let's ground everything in a metaphor:

Imagine a process as a restaurant kitchen. Inside, multiple cooks (threads) work in harmony, sharing space, resources, and tasks—yet maintaining their own private workstations.

This article uses this metaphor to break down processes, threads, and memory into something relatable—and hopefully memorable.

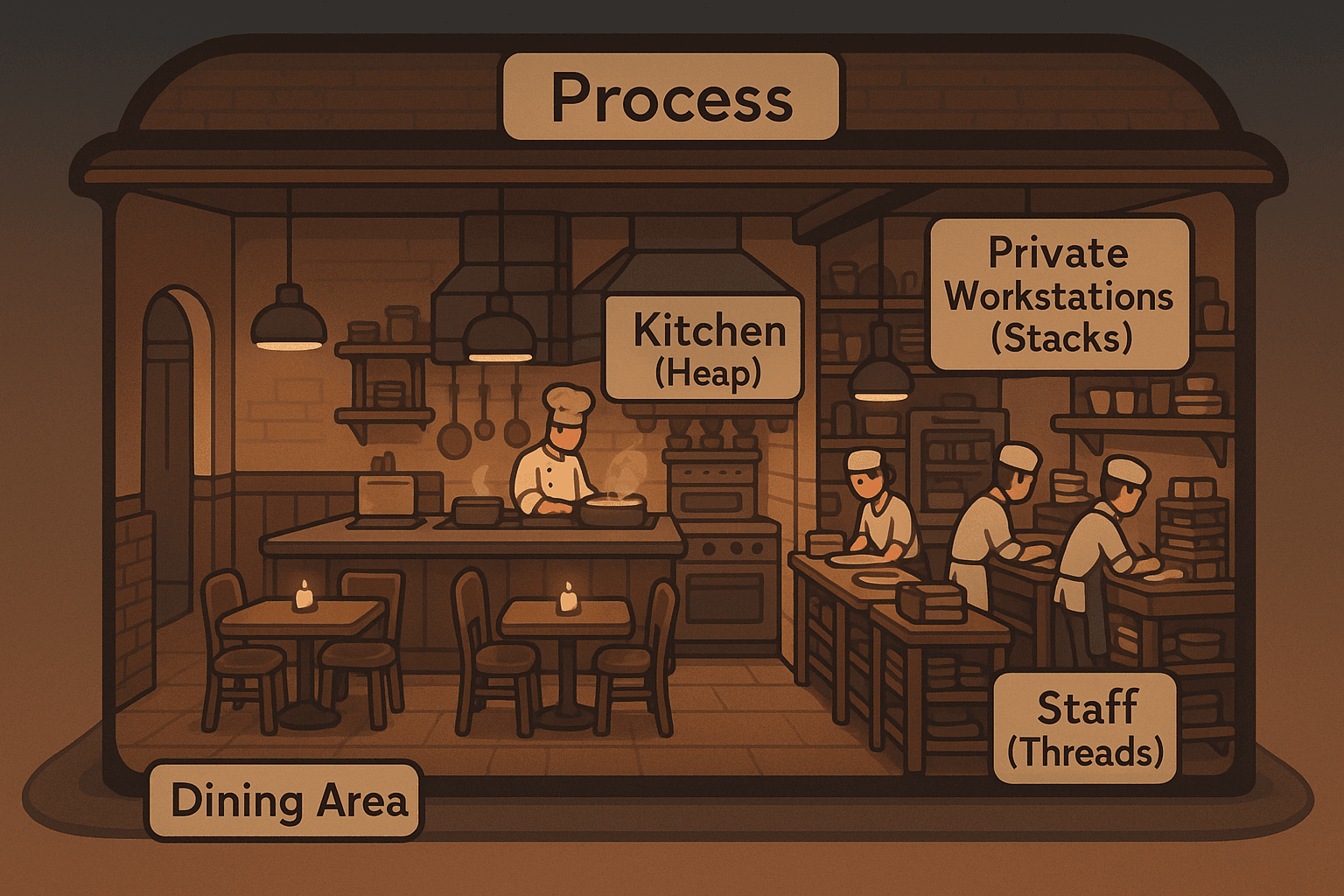

🏠 The Process: A Fully Functioning Restaurant

A process is like a restaurant. It has:

• A clearly defined building (address space)
• A staff (threads)
• Tools, supplies, and workstations (memory and CPU registers)
• A purpose: producing output (e.g., HTML, a rendered UI, compiled code)

Just as a restaurant operates within its own building, a process has its own virtual address space—a walled-off environment that no other process can enter directly.

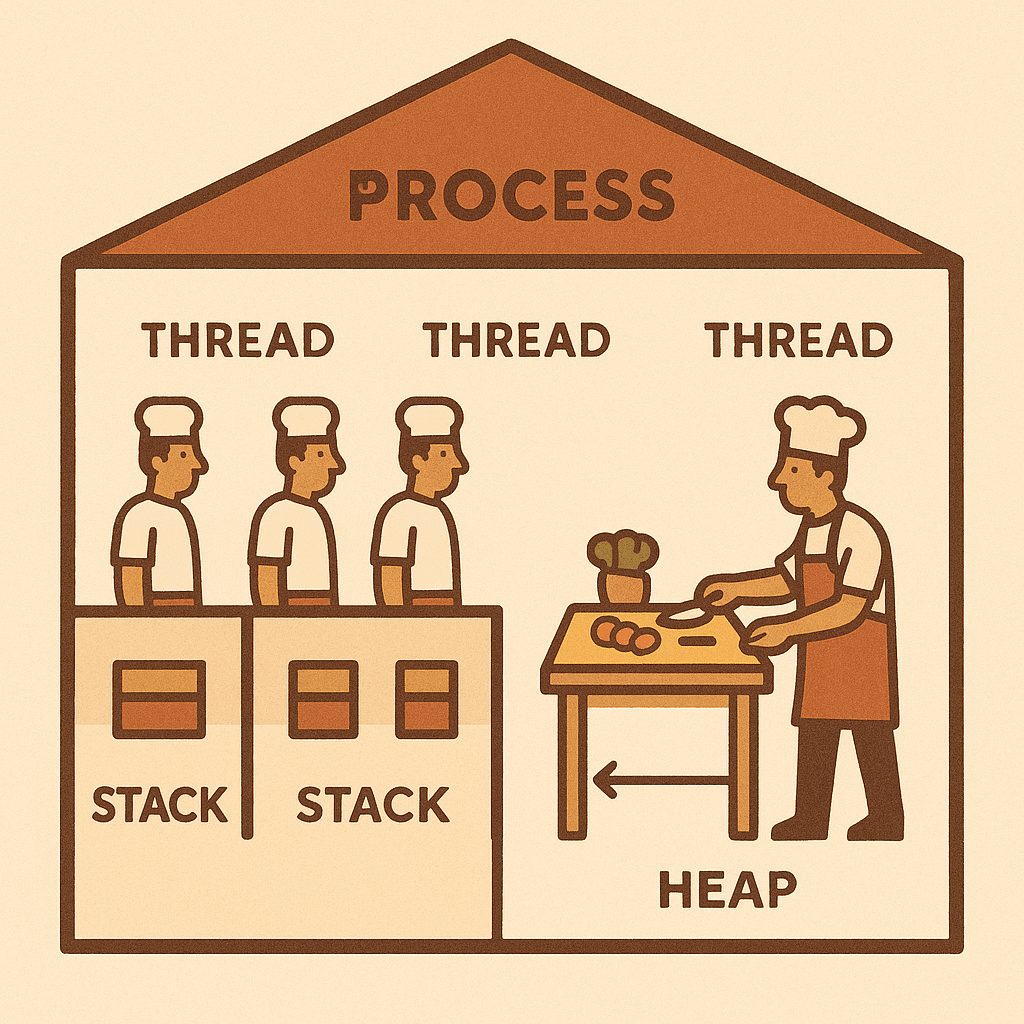

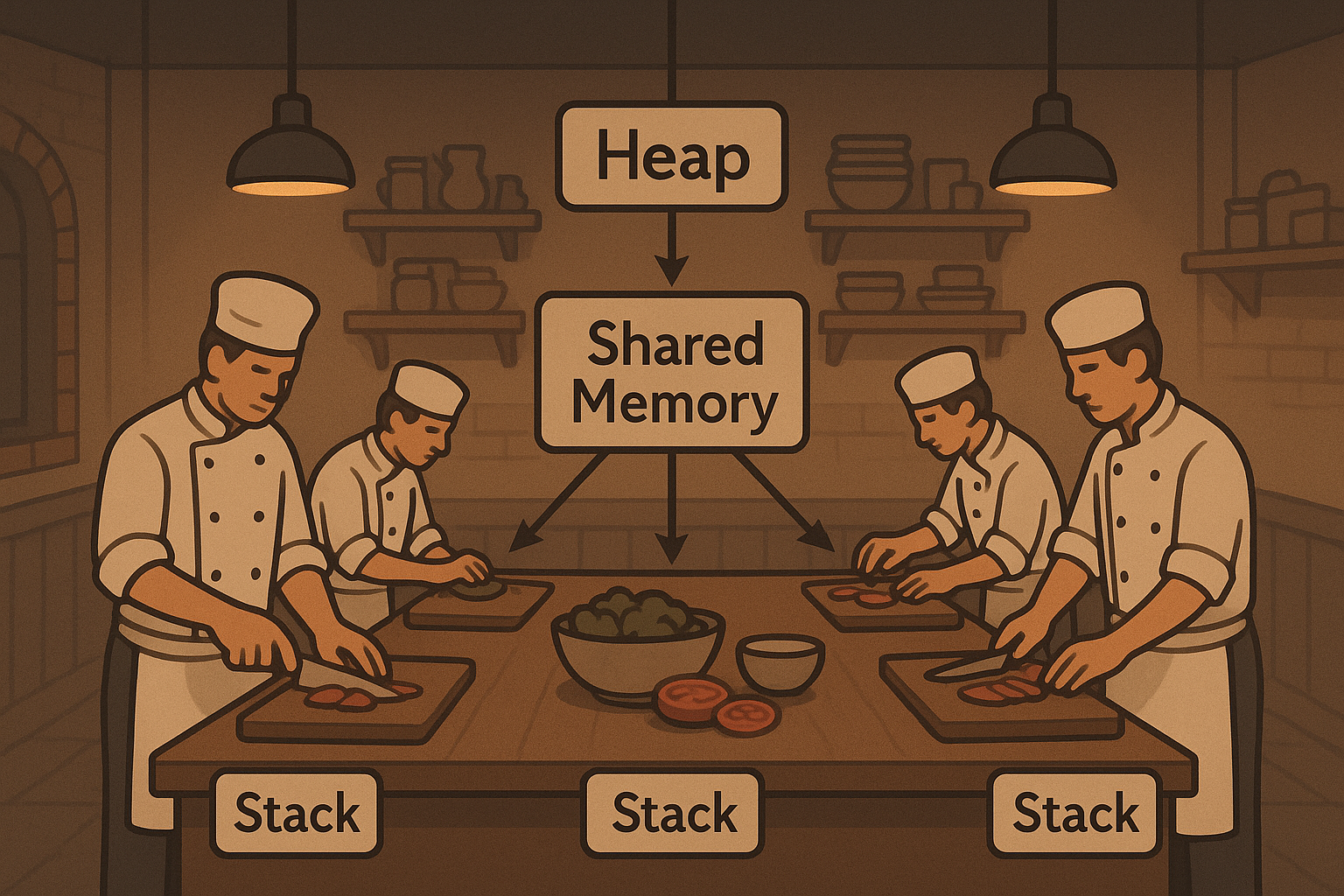

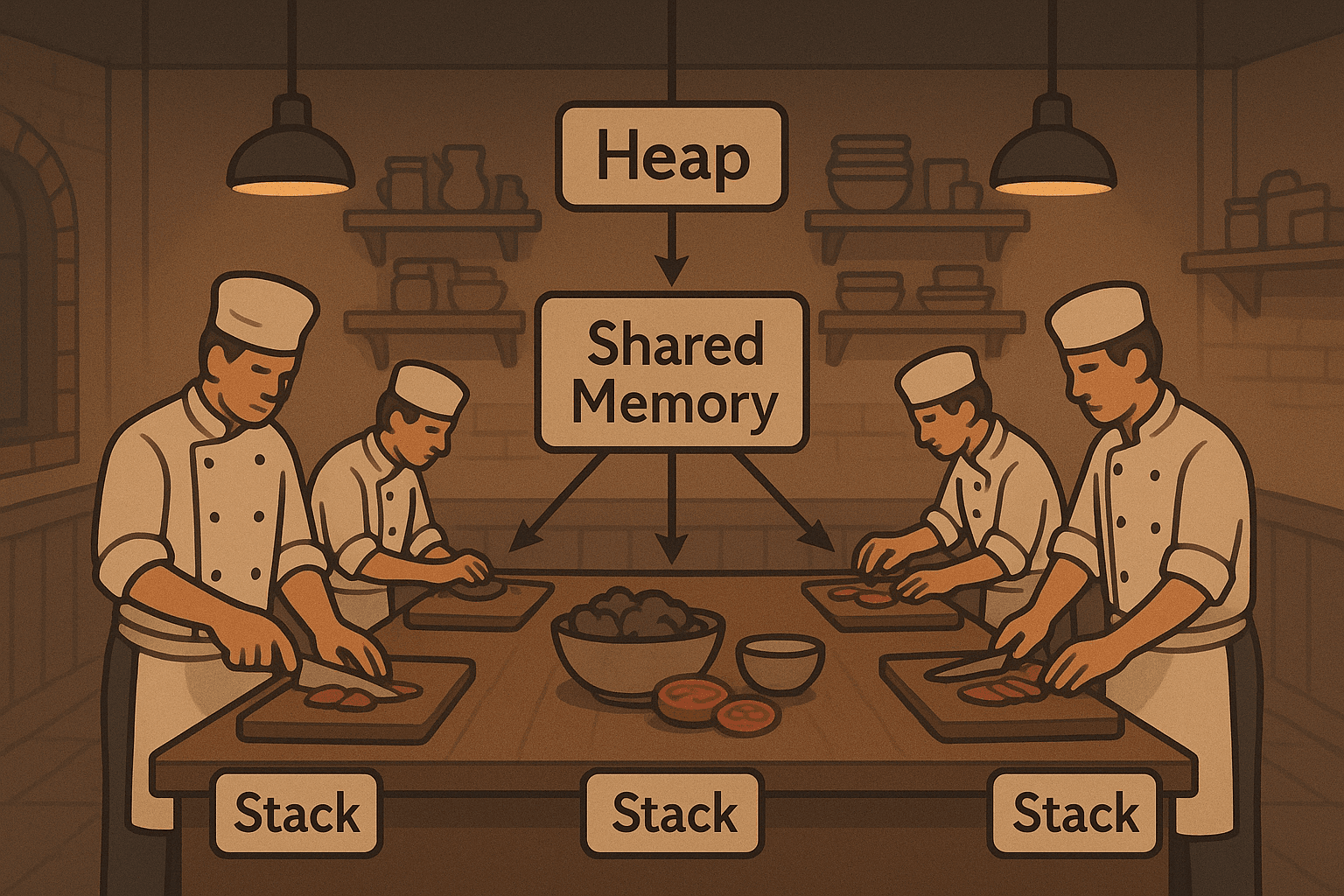

👨‍🍳 Threads: The Kitchen Staff

Inside the restaurant, multiple cooks (threads) work in parallel. Each cook:

• Has a private workstation with tools and ingredients (stack memory)
• Shares access to a common prep area (heap memory)
• Can retrieve or store shared ingredients in the pantry (global memory)
• Works toward the same goal: fulfilling the restaurant’s output

Key characteristics of threads:

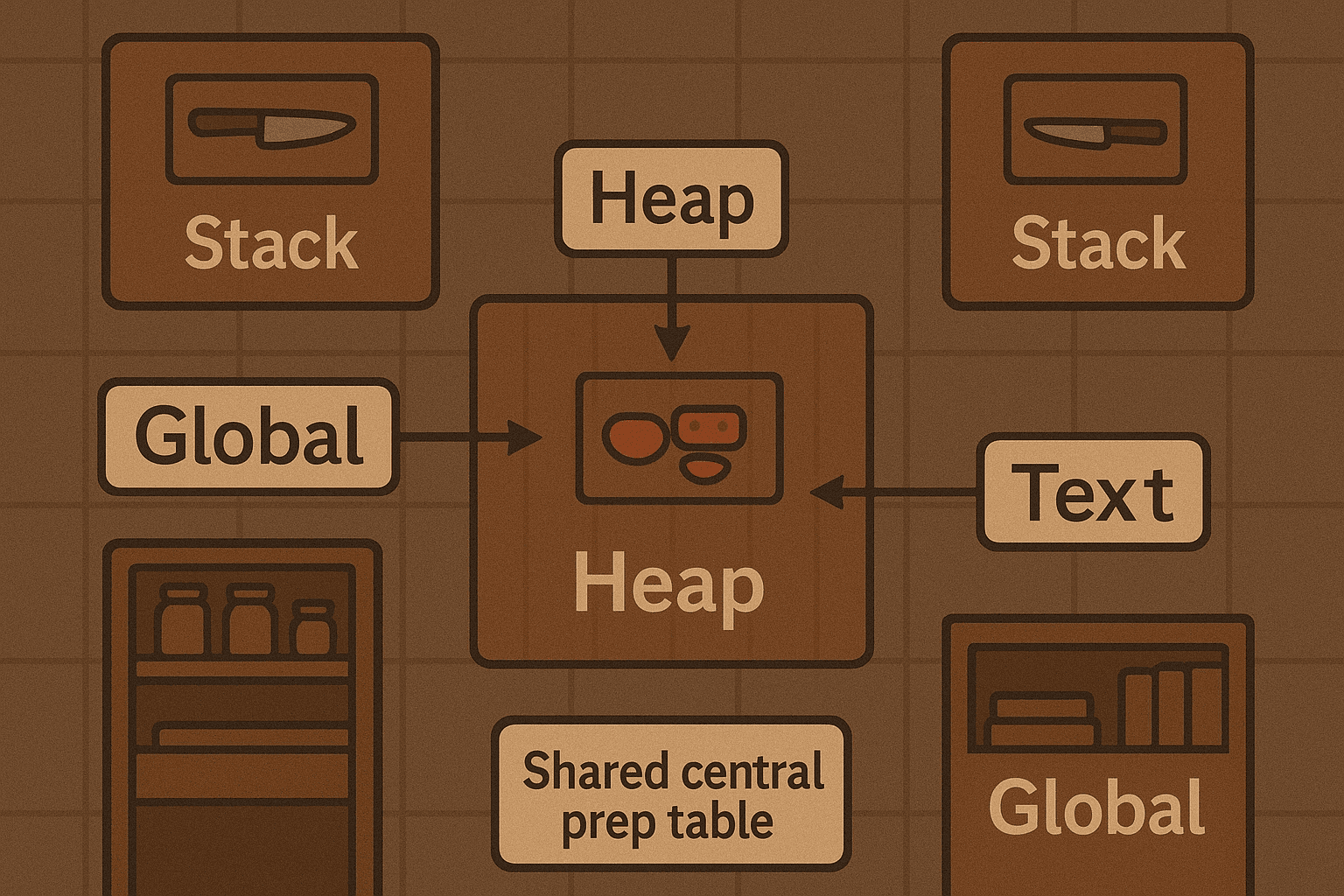

🧠 Memory Model: The Kitchen Layout

The restaurant’s memory is split into shared and private regions:

The heap is useful for shared ingredients: databases, socket connections, large datasets. The stack is perfect for temporary, scoped items like chopping an onion or seasoning a single dish—specific to one cook's task.

🔁 Context Switching: Changing Cooks on the Line

Sometimes, a cook (thread) needs to step aside, and another takes their place. The OS performs a context switch—saving one thread’s state and loading another’s.

In our metaphor:

• The cook writes down where they left off (registers, stack pointer)
• A new cook steps in and resumes a different dish from where they left off

This switch happens extremely fast—but it's not free. Fewer context switches = more efficient kitchen.

🔐 Isolation and Safety

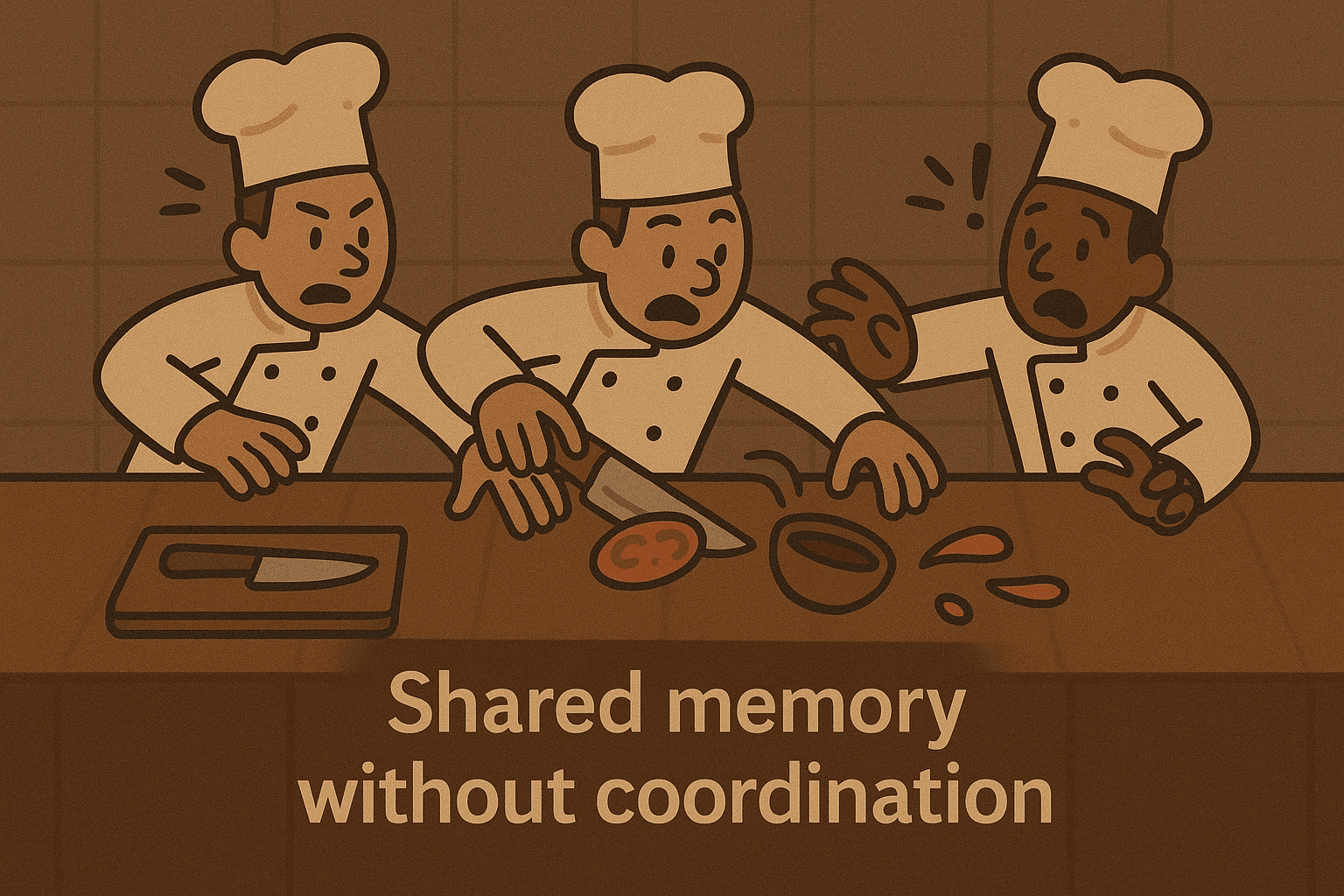

Threads within a process can easily mess with each other's tools or ingredients (shared memory). That’s why:

• Coordination (mutexes, semaphores) is essential
• One thread crashing can spoil the whole kitchen
• More threads = more concurrency, but more complexity

In contrast, processes are completely isolated kitchens—no shared counters or ingredients unless you explicitly connect them via pipes, sockets, or shared memory segments.

⚙️ System Calls and Resources

When the restaurant needs outside help (e.g., new groceries, customer orders), it makes a system call—a request to the operating system, which acts like a building manager or delivery service.

Examples:

• read() → fetch ingredients
• write() → serve the dish
• fork() → open a second restaurant
• exec() → replace the kitchen with an entirely new concept (like switching from sushi to pizza)

🧪 Summary Table

📘 Closing Thoughts

By visualizing processes and threads as a bustling restaurant, you can better understand:

• Why threads are powerful but risky
• How memory is divided and accessed
• Why processes provide isolation and security
• What coordination and context switching actually involve

This metaphor not only clarifies the structure but gives you a mental model for debugging, performance tuning, and designing concurrent systems.

✍️ Optional Exercises

1. Rewrite this metaphor using a factory instead of a restaurant. What changes? What stays the same?
2. List three real-world programs that use multiple threads. What roles might the threads play?
3. Describe a bug that could occur in a multithreaded environment using this metaphor (e.g., two cooks overwrite each other's data).
